Features & Specifications

The unique inverted cone design is strong and provides a simple snap-together assembly.

• Dimensions : 48″ x 40″x 5.5″
• Rack with either the 40″ or 48″ widths
• Rounded corners cause less damage to other products and facilities.
• Stackable – static load tested to 30,000lbs.
• Optional steel support struts decrease deflection and add edge strength for wider spaced rack bars.

Lightweight, low-cost and exceed industry standards for strength and durability. Plus, they’re recyclable and reusable!

This stackable, double deck design has four-way easy entry for forklifts, pallet jacks or hand trucks. The key to this design is conical pedestal, which provides strength and easy snap together assembly. The deck has a non slip texture molded in for secure load placement. It is a cost effective choice that will stand up to the daily rigors.

• Provides durability for a long pallet life cycle.
• A recycled material that is again recyclable. The Polypropylene blend is accepted by major plastic recyclers lowering disposal costs.
• Doesn’t shatter or crumble – ideal for cold storage conditions.

One person can easily handle empty pallets. Only 28 lbs. Add support struts it is still only 39 lbs.

This sleeve, placed on the four corner cones, helps protect the pallet’s cone pedestal from forklift tine damage thus extending the life of the pallet.

• Rackable loads up to 2650 lbs.*
• Dynamic loads exceed 3000 lbs.*
• Static load up to 30,000+ lbs.*

* As tested by Michigan State University School of Packaging

• Non-absorbent washable materials. Easily cleaned for sanitary conditions.
• Resistant to most caustic chemicals
• Anti-skid surface molded on deck and bottom. Limits slippage of loads and sliding when using pallet jacks.

• Non-absorbent washable materials. Easily cleaned for sanitary conditions.
• Resistant to most caustic chemicals
• Anti-skid surface molded on deck and bottom. Limits slippage of loads and sliding when using pallet jacks.

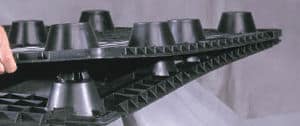

Gain a 3 to 1 ratio when shipping unassembled. A 53′ truck will fit 540 assembled pallets and 1560 unassembled. Shipping is FOB Wheaton, MN
